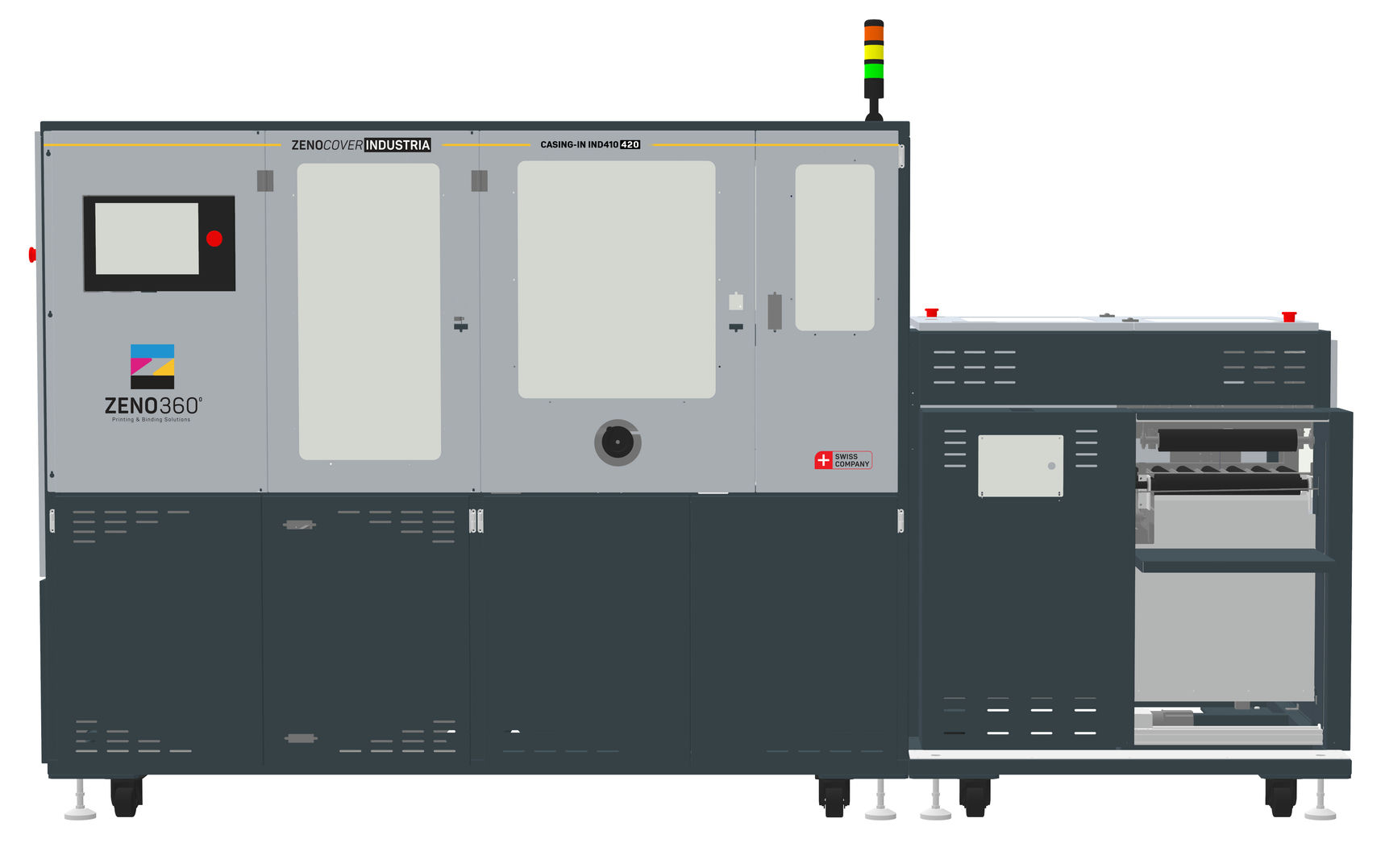

Casing-In IND410-420 is a fully automatic Casing-In machine. The hard cover and bookblock are fed into machine automatically. The machine sprays the hotmelt, assembles the cover on the bookblock in centre position. It includes heat and joint forming station, It is compact and save the space of operation.
Key Features
All in one system : Integrated auto feeding, gluing, assembling units a Joint forming station;
Flexible production for different sizes : 150mm x 150mm to 360mm x410mm;
Hotmelt gluing technology : cheaper cost and faster delivery;
The ability to assemble book blocks with a capital letter and a bookmark glued on;
Specifications
Book block size : Minimum: 135 mm x 125 mm x 2mm
(width x height x thickness) : Maximum: 350 mm x 410 mm x 40 mm
Open case : Minimum: 285mm * 130mm * 1.5mm * 6mm
(width x height x thickness - spine) : Maximum: 750mm * 420mm * 5mm * 45mm
Finished book : Minimum: 140 mm*130. mm * 6mm
(width x height x thickness) : Maximum: 360mm * 420mm * 45mm
