Layflat IND460-1000

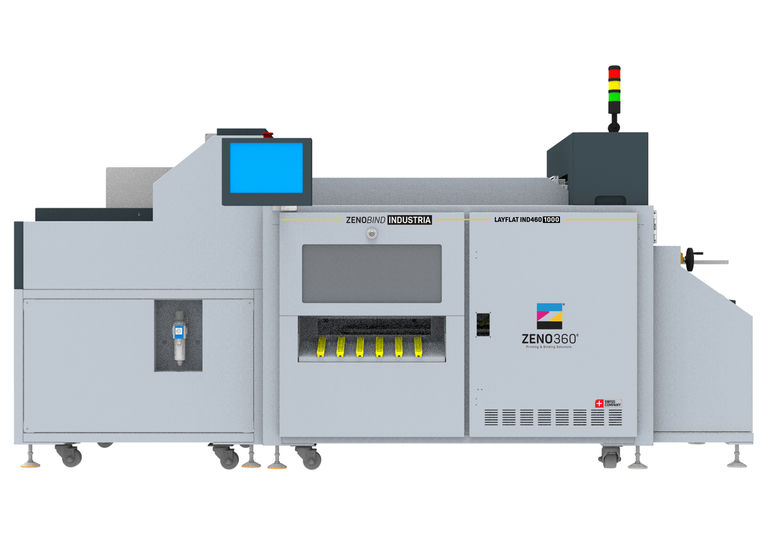

Layflat IND460-1000 is a fully automatic book block system which can produce LAYFLAT book blocks from single sheets. It is an all-in-one machine which includes a creaser and a folder. It creates premium book by gluing papers back-to-back as well as inserting cardboard in between sheets. This machine is ideal for creating professional promotional books where high speed is a priority.
The Layflat IND460-1000 is an all-in-one integrated system which can complete the tasks of automatic feeding, creasing, folding, gluing, and assembling. Its automatic paper alignment system and user-friendly touchscreen, make it easy to operate. It offers flexible production for different sizes. The LAYFLAT IND460-1000 comes with the hallmark LAYFLAT binding technology as well as Hotmelt gluing technology which ensures faster delivery at a cheaper price.
Key Features
- All in one system: Integrated auto feeding, creasing, folding, spinning pressing, gluing and assembling units.
- Automatic paper alignment system;
- Easy to operate via touch screen;
- Flexible production for different sizes: 6" x 6" (152mm x 152mm) to 18" x 18" (460mm x 460mm).
- Layflat binding technology;
- Hotmelt gluing technology: cheaper cost and faster delivery;
Full Specifications
| Book block height : | 6"-18" (152mm - 460mm) |
|---|---|
| Book block width (open) : | 12”-36” (305mm-915mm) |
| Maximum thickness of book block : | 50mm |
| Cardboard : | With or without |
| Glue : | Hot melt |
| Thickness of cardboard : | 0.35mm - 1mm |
| Thickness of paper : | 0.15mm - 0.3mm |
| Speed : | 1000 cycles/hour (without cardboard), 500 cycles/hour (with cardboard) |
| Power Supply : | 220V 50 Hz - single phase |
| Maximum power consumption : | 2000W |
| Machine dimension : | 3050(L) * 1150(W) * 1420(H) * mm |
| Weigh(approx.) : | 750kg |
| Air compressor : | 0.65 -0.8MPa 200L/min |
