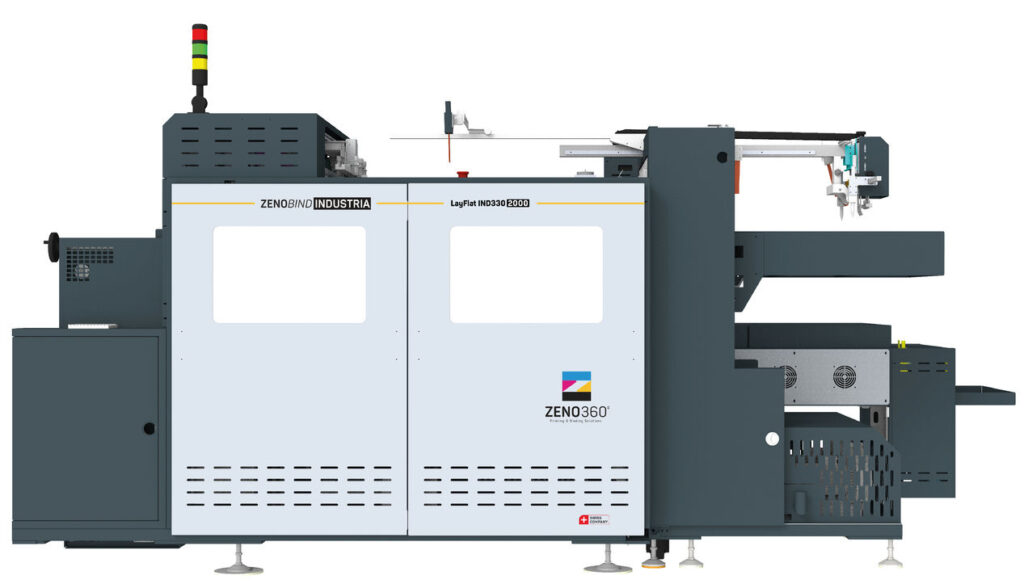

LayFlat IND330-2000
LayFlat IND330-2000 is a high speed fully automatic book block system which produces Layflat book blocks from single sheets. It can make photo book not only by gluing paper back to back but also by inserting cardboard between sheets. It is all in one station, creaser, folder and online presser are included, it is high speed and good for Coffee table books, Journals and notebooks. Textbooks, Corporate publications, Product books and Children books
Key Features
- All in one system : Integrated auto feeding, gluing, assembling units and online presser;
- High speed : 2000 cycles/hour;
- Industrial grade : can run 24 hours per day, big volume paper and cardboard stacker;
- Fully automatic : with bar code scanning system, don't need operator intervention;
- Layflat binding technology;
- Hotmelt gluing technology: cheaper cost and faster delivery;
Technical Specifications
Full Specifications
| Book block height : | 203 mm x 330 mm |
|---|---|
| Book block width (open) : | 355 mm x 750 mm |
| Maximum thickness of book block : | 50mm |
| Cardboard : | With or without |
| Glue : | Hot melt |
| Thickness of cardboard : | 0.35 mm-1mm |
| Thickness of paper : | 0.15 mm-0.3 mm |
| Speed : | 1000 cycles/hour (without cardboard), 500 cycles/hour (with cardboard) |
| Power Supply : | 220V 50HZ Single phase |
| Maximum power consumption : | 2700 W |
| Machine dimension : | 2.95 (1) x 1.80 (W) x 1.50 (H) m |
| Weigh(approx.) : | 1500 kg |
| Air compressor : | 0>0.8mpa, 300L/min |
