Layflat E330-300
Explore our full range of binding, cover making, mounting, trimming and automation systems.
Best Seller

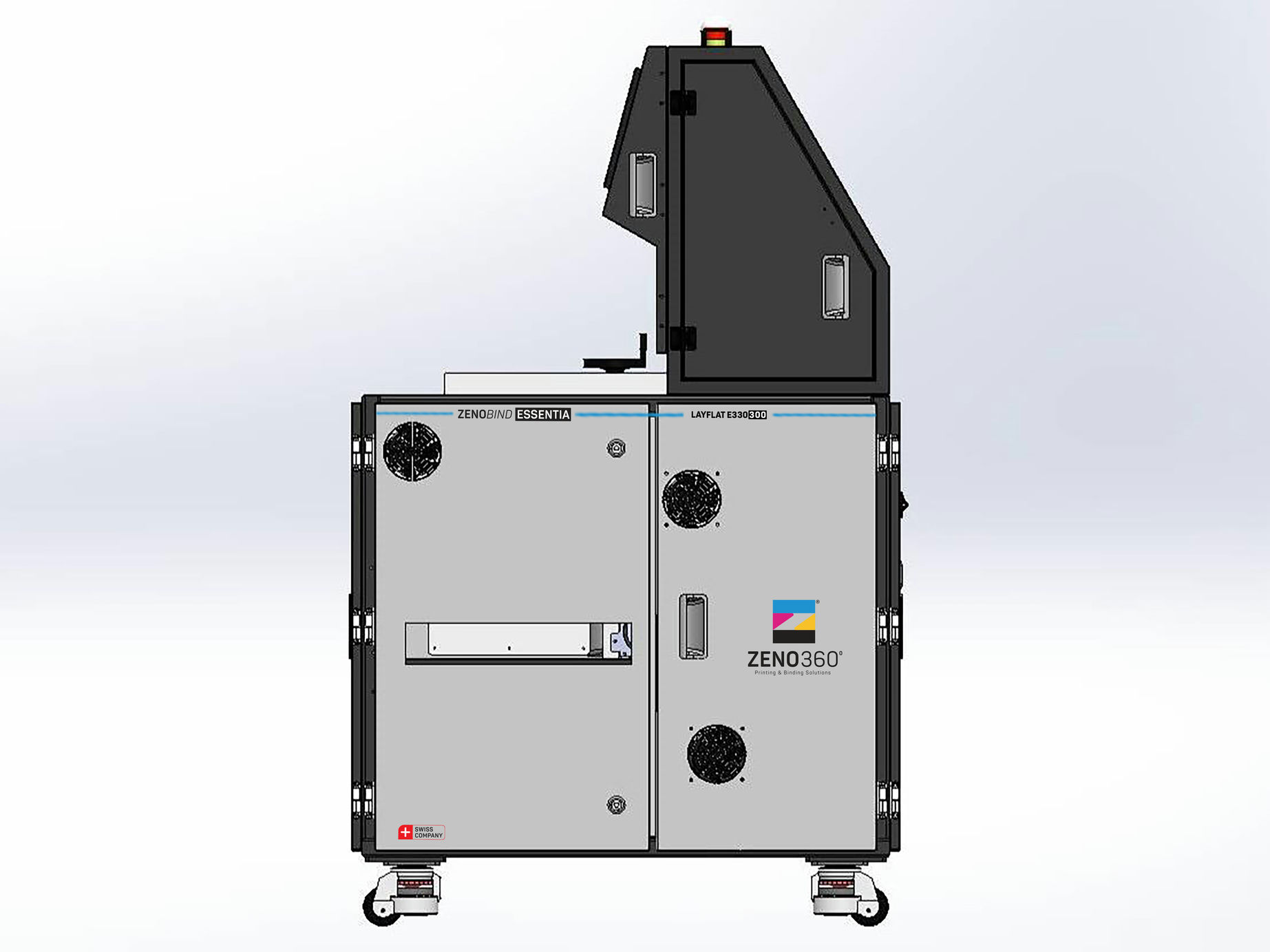

Layflat E330-300
Layflat E330-300 is a fully automatic book block system which produces LAYFLAT book blocks from single sheets. It can make premium book formats not only by gluing paper back to back but also by inserting cardboard between sheets. It is all in one station, creaser and folder are included, it is compact and can run in small place.
Key Features
- All in one system: Integrated auto feeding, gluing, assembling ;
- Small footprint, can fix small shop;
- Easy to operate via touch screen;
- Flexible production for different sizes: 6”x6” to 13”x 13”;
- Layflat binding technology;
- Hotmelt gluing technology: cheaper cost and faster delivery;
Technical Specifications
Full Specifications
| Book block height : | 6”-13” ( 152mm-330mm) |
|---|---|
| Book block width (open) : | 12”-26” ( 305mm-660mm) |
| Maximum thickness of book block : | 30mm |
| Cardboard : | With or without |
| Glue : | Hot melt |
| Thickness of cardboard : | 0.35mm-1mm |
| Thickness of paper : | 0.15mm-0.3mm |
| Speed : | 300 cycles/hour |
| Power Supply : | 220V 50HZ Single phase |
| Maximum power consumption : | 2000W |
| Machine dimension : | 700mm(L) x 800mm(W) x 1400mm(H) |
| Weigh(approx.) : | 650kg |
| Air compressor : | No Required |
| Noise : | <70db |
