Layflat E460-600 M

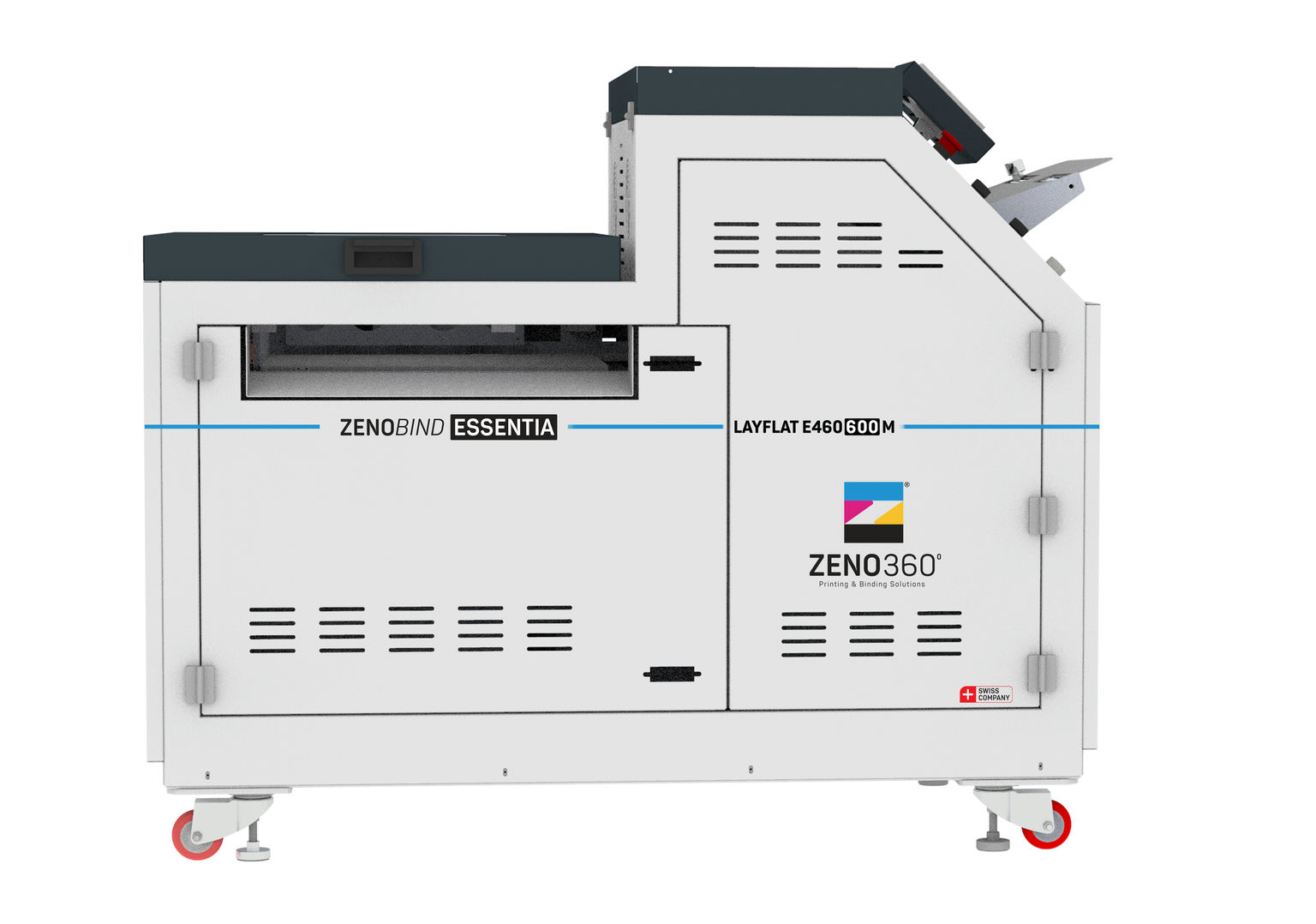

Layflat E460-600 M is a semi automatic book block system which produces Layflat book blocks from single folded sheets. It can make photo book not only by gluing paper back to back but also by inserting cardboard between sheets.
Key Features
- Manual feeder for folded sheets and cardboard ;
- Easy to operate via touch screen;
- Flexible production for different sizes: 6”x6” to 18“x18“;
- Flexible production for different sizes: 6”x6” to 13”x 13”;
- Layflat binding technology;
- Hotmelt gluing technology: cheaper cost and faster delivery;
Technical Specifications
Full Specifications
| Book block height : | 6”-18” (152mm-460mm) |
|---|---|
| Book block width (open) : | 12”-36” (305mm-915mm) |
| Maximum thickness of book block : | 50mm |
| Cardboard : | With or without |
| Glue : | Hot melt |
| Thickness of cardboard : | 0.35mm-1mm |
| Thickness of paper : | 0.15mm-0.3mm |
| Speed : | 600 cycles/hour |
| Power Supply : | 220V 50HZ Single phase |
| Maximum power consumption : | 2000W |
| Machine dimension : | 1.214m (L) x 0.8m (W) x 1.16m (H) |
| Weigh(approx.) : | 350kg |
| Air compressor : | 0.6-0.7mpa, >180L/min |
